Lampu & Panel
Type 220

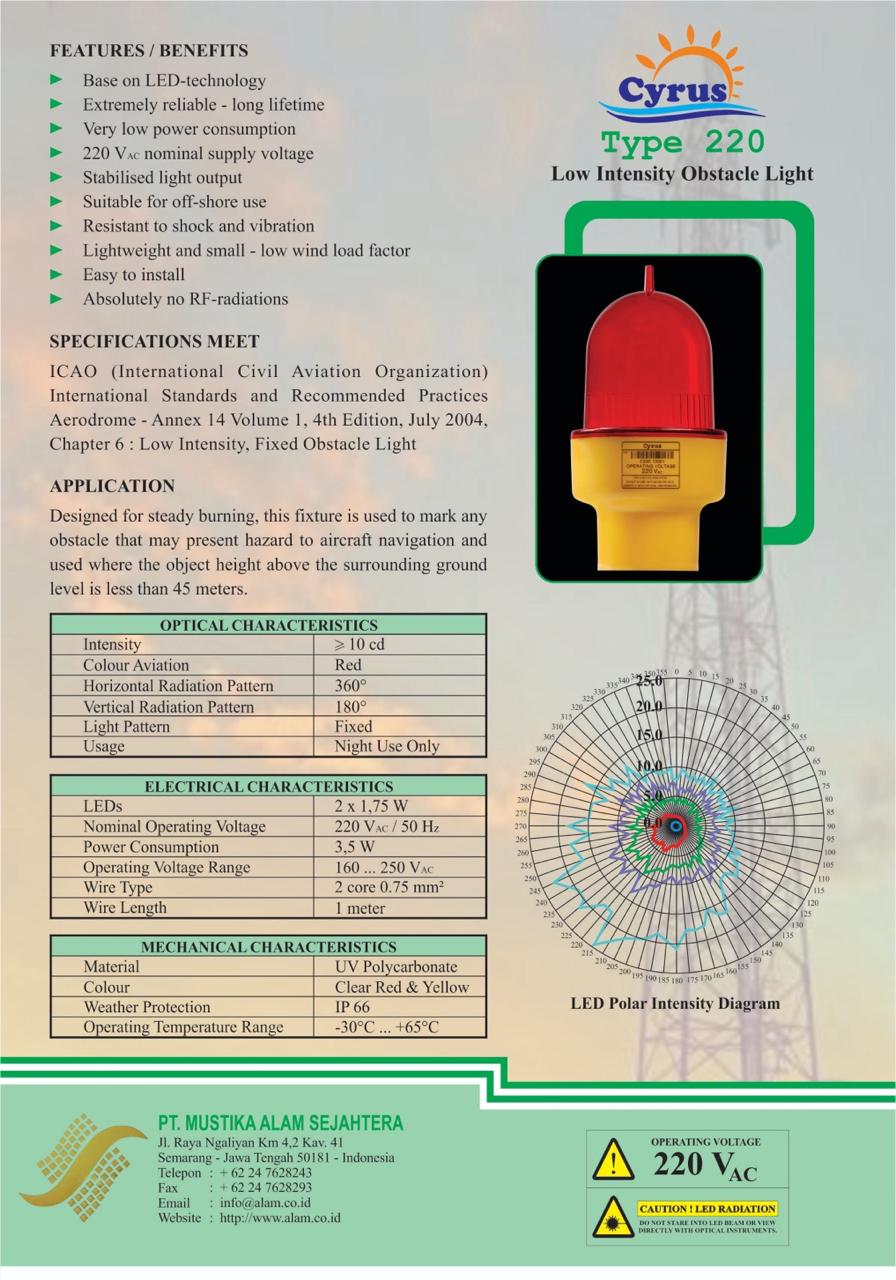

Low Intensity Obstacle Light
Features / Benefits
- ✔️ Base on LED-technology
- ✔️ Extremely reliable – long lifetime
- ✔️ Very low power consumption
- ✔️ 220 VAC nominal supply voltage
- ✔️ Stabilized light output
- ✔️ Suitable for off-shore use
- ✔️ Resistant to shock and vibration
- ✔️ Lightweight and small – low wind load factor
- ✔️ Easy to install
- ✔️ Absolutely no RF-radiations
Specifications Meet
ICAO (International Civil Aviation Organization) International Standards and Recommended Practices Aerodrome – Annex 14 Volume 1, 4th Edition, July 2004, Chapter 6: Low Intensity, Fixed Obstacle Light.
Application
Designed for steady burning, this fixture is used to mark any obstacle that may present a hazard to aircraft navigation and is used where the object height above the surrounding ground level is less than 45 meters.
Specifications
Optical Characteristics
| Intensity | ≥ 10 cd |
| Color Aviation | Red |
| Horizontal Radiation Pattern | 360° |
| Vertical Radiation Pattern | 180° |
| Light Pattern | Fixed |
| Usage | Night Use Only |
Electrical Characteristics
| LEDs | 2 x 1.75 W |
| Nominal Operating Voltage | 220 VAC / 50 Hz |
| Power Consumption | 3.5 W |
| Operating Voltage Range | 160 – 250 VAC |
| Wire Type | 2 core 0.75 mm² |
| Wire Length | 1 meter |
Mechanical Characteristics
| Material | UV Polycarbonate |
| Color | Clear Red & Yellow |
| Weather Protection | IP 66 |
| Operating Temperature Range | -30°C … +65°C |
